OM Pro S

More
  • Features and applications
  • Technical data
  • Configurations

From

€49.00

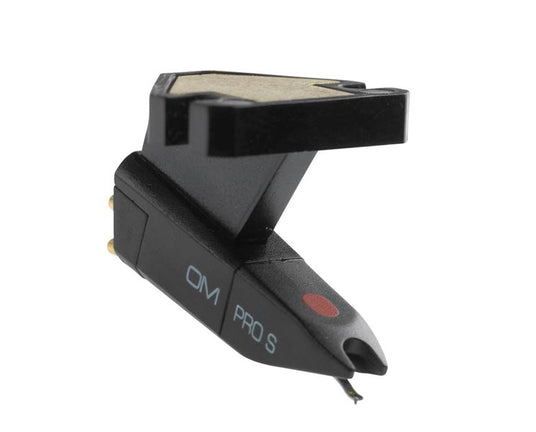

OM Pro S entry-level cartridge

New DJ? This entry-level cartridge is perfect for newcomers on the DJ scene who want to start  off with decent, but not too expensive equipment.

The Pro S has a spherical diamond stylus which minimizes scratching and a solid cantilever which can survive hectic activity at the turntable.

No matter what the application, the Pro S provides remarkable versatility for virtually any setting.

The sound quality is absolutely not to worry about.

The Pro S is a consistent performer and a fine all-arounder!

Pro S Technical data

  • Stylus Type Spherical
  • Tracking Force 4.0 g
  • Output Voltage 5 mV
  • Frequency Range 20–18.000 Hz

Output voltage at 1000Hz, 5cm/sec.  -  5 mV
Channel balance at 1kHz  -  2 dB
Channel separation at 1kHz  -  20 dB
Channel separation at 15 kHz  -  15 dB
Frequency range at -3dB  -  20-18.000 Hz
Tracking ability at 315 Hz at recommmended tracking force  -  70 μm
Compliance, dynamic lateral  -  7 μm/m N
Stylus type -  Spherical
Stylus tip radius -  R 18 μm
Tracking force range  -  3 - 5 g
Tracking force recommended  -  4 g

Tracking angle  -  20°
Internal impedance, DC resistance  -  750 Ohm
Internal inductance  -  450 mH
Recommended load resistance  -  47 kOhm
Recommended load capacitance  -  200-600 pF
OM cartridge weight  -   5,0 g
Replacement stylus unit -  Pro S

For information about set-up and alignment, stylus care and lifetime, break-in time, troubleshooting check out our DJ FAQ.

Download the DJ range cartridges userguide

01311060 €49.00 EUR In Stock

€49.00

In stock Low Stock Out of stock Usually dispatched within 1-3 working days

Find dealer
  • We deliver worldwide by UPS within 5 working days
  • Shipping rates: € 9,95 within the EU/€ 19,95 outside the EU
  • Return within 15 days from the delivery date

Product Variants
