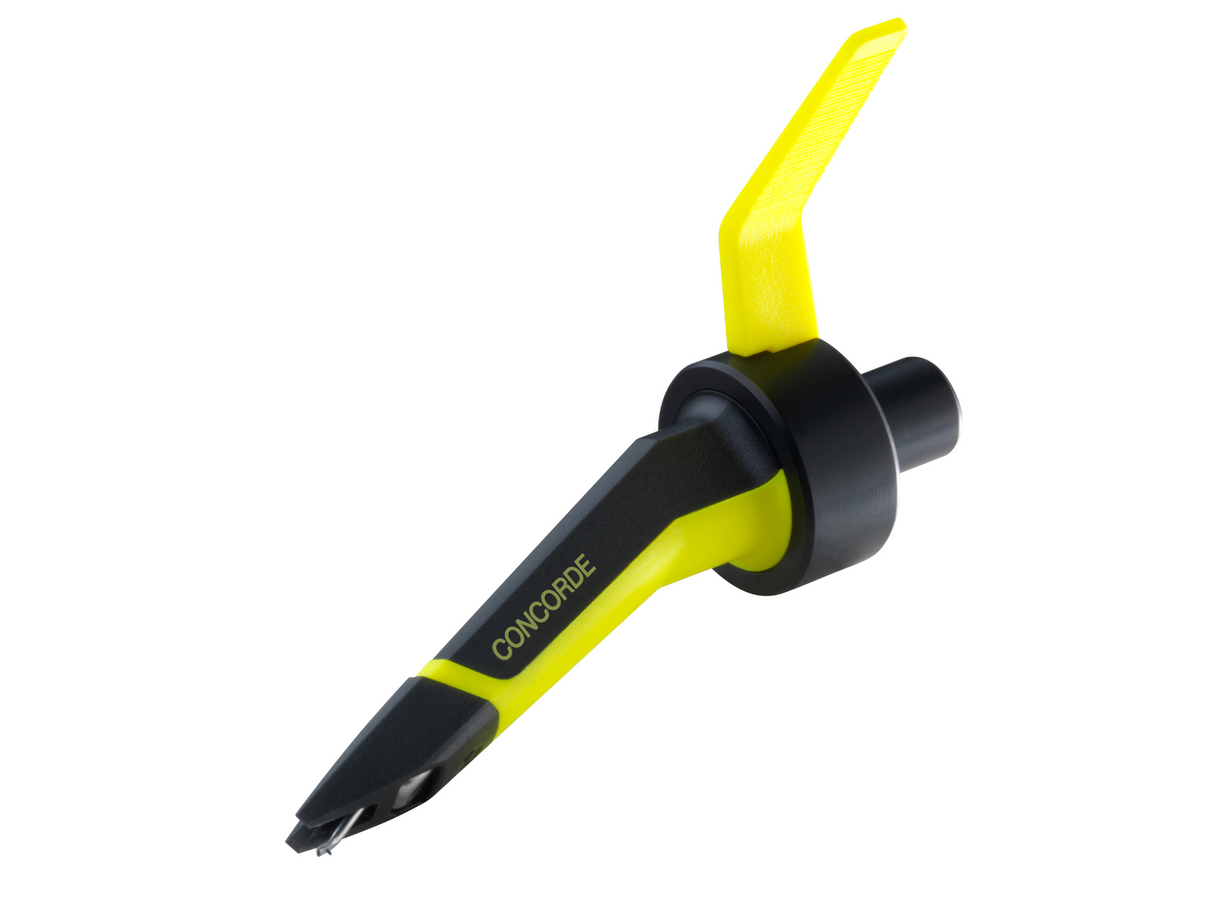

Concorde MkII CLUB Single
- Free shipping
- We deliver worldwide by UPS within a week
- Return within 15 days from the delivery date
The best sound quality achievable for traditional vinyl playback
The CLUB boasts the best specifications and best sound, making it an ideal choice for Club DJs in any environment: studio, broadcast or club.
• The CLUB features a Special-Elliptic stylus that allows for detailed sound quality: Special-Elliptic stylus fits better in the groove and therefore has more contact area with the groove itself, extracting more intricate details, than is possible with a spherical diamond.
• The CLUB’s 8 mV output voltage requires less gain from the preamps, providing cleaner sound reproduction and less susceptibility to feedback in live environments.
The CLUB offers an outstanding platform for archival and sampling.
Concorde CLUB technical data
- Stylus Type Special Elliptical
- Tracking Force 3.0 g
- Output Voltage 8 mV
- Frequency Range 20–20.000 Hz
Output voltage at 1000Hz, 5cm/sec. - 8 mV
Channel balance at 1kHz - 1 dB
Channel separation at 1kHz - 25 dB
Channel separation at 15 kHz - 15 dB
Tracking ability at 315 Hz at recommended tracking force - 100 μm
Compliance, dynamic lateral - 14 μm/m N
Stylus type - Special Elliptical r/R 13/25 μm
Tracking force range - 2 - 4 g
Tracking force recommended - 3 g
Internal impedance, DC resistance - 1000 Ohm
Internal inductance - 650 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-600 pF
Cartridge weight - 18,5 g
Replacement stylus unit - CLUB
Download Concorde MkII Universal userguide
Spares and Merchandise
Concorde CLUB is available in following configurations:
• Concorde TWIN (two Concorde MkII MIX cartridges with preinstalled styli), supplied in Flight case

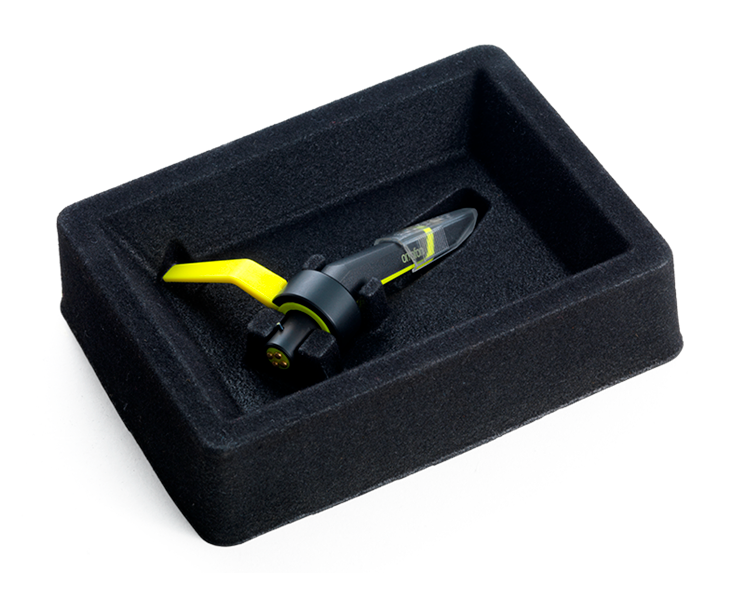

• Concorde Single (one Concorde MkII MIX cartridge with preinstalled stylus)
Spares:
• Stylus CLUB
• Styli protection guards for Concorde MkII, pair
• Finger lift for Concorde MkII
Merchandise:
• Slipmat CLUB
