Ortofon LH-4000 headshell

The LH-4000 is a basic high quality headshell designed specifically for HiFi applications. Providing a clean, minimalist aesthetic, the LH-4000 is great for a wide variety of cartridges, specially recommended for the MC Quintet series.

Special features:

  • Azimuth adjustable, which is beneficial for optimal channel separation
  • Ergonomic fingerlift for easy handling

Knowing the fundamental headshell dimensions will in a lot of cases make it easier to mount and align cartridge and tonearm correctly. Please find Ortofon headshells dimensions chart here.

The LH-4000 comes with leadwires for easy and convenient connection

All Ortofon cartridges have a colour coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.

We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell.

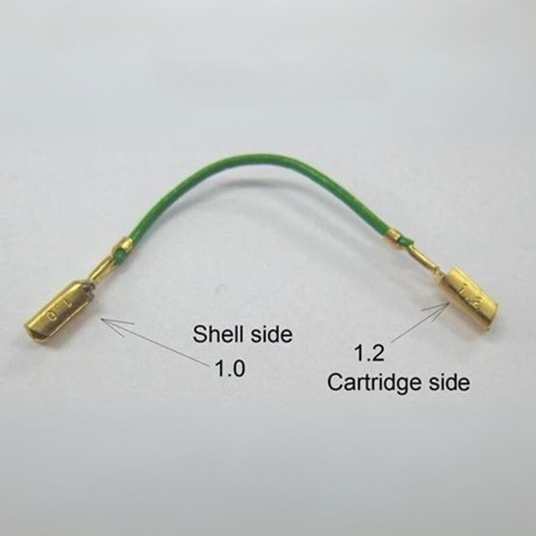

Please remember correct orientation of the leads. Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is only 1.0 mm.

Features and Technical data

  • Universal mount
  • Solid aluminum build
  • Azimuth adjustable by means of hexagon wrench.
  • PIN conductor - Gold plated
  • Weight - 14.3 grams without screws
  • Mounting distance - min 32.5 mm, max 41.9 mm
Headshell dimensions.jpg

A - Headshell length

B - Headshell width

C - Mounting distance max.

D - Mounting distance min.

E - Screw diameter max.

HEADSHELL MODEL A
Headshell length
B
Headshell width
C
Mounting distance max.
D
Mounting distance min.
E
Screw diameter max.
SH-4 51.5 mm 20.0 mm 44.0 mm 35.0 mM 3.0 mm
LH-2000 50.3 mm 20.0 mm 41.9 mm 32.5 mm N/S
LH-4000     41.9 mm 32.5 mm N/S
LH-6000 47.7 mm 19.1 mm 42.5 mm 37.2 mm N/S
LH-8000 50.5 mm 19.0 mm 41.9 mm 32.5 mm N/S
LH-9000 52.0 mm 20.0 mm 46.0 mm 38.0 mm N/S
LH-10000 51.2 mm 19.4 mm 42.0 mm 42.0 mm 2.7 mm
J111332012 €95.00 EUR In Stock
