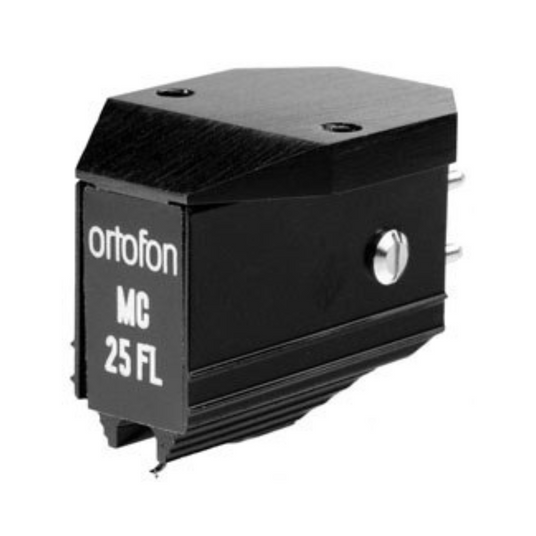

MC 25 FL

The MC 25 FL has an output voltage of 500 µ Volt at 1000 Hz and 5 cm/sec and offers clear and detailed sound reproduction. Featuring a channel balance of < 1.0 dB at 1 kHz and channel separation > 25 dB at 1 kHz, this cartridge ensures accurate audio playback. Its tracking ability of > 80 µm and recommended tracking force of 2.0 g make it suitable for various vinyl recordings.

The MC 25 FL is designed with precision and durability in mind, weighing 10.5 g and equipped with a Fine Line stylus tip.

Ortofon MC 25 FL technical data

Output voltage at 1000 Hz, 5cm/sec. 500 µV
Channel balance at 1 kHz < 1.0 dB
Channel separation at 1 kHz > 25 dB
Frequency range 20Hz to 30kHz
Tracking ability (315Hz, lateral) > 80 µm
Compliance, dynamic (lateral) 16 µm/mN
Stylus type Fine Line
Stylus tip radius r/R 8/40 µm
Tracking force range     1.8-2.2 g (18-22 mN)
Tracking force, recommended 2.0 g (20 mN)
Tracking angle (vertical) 20°
Internal impedance 6 Ohm
Recommended load impedance > 20 Ohm
Lead wiring 4 nines copper
Weight 10.5 g
