Replacement stylus

Stylus CC MKII Elite

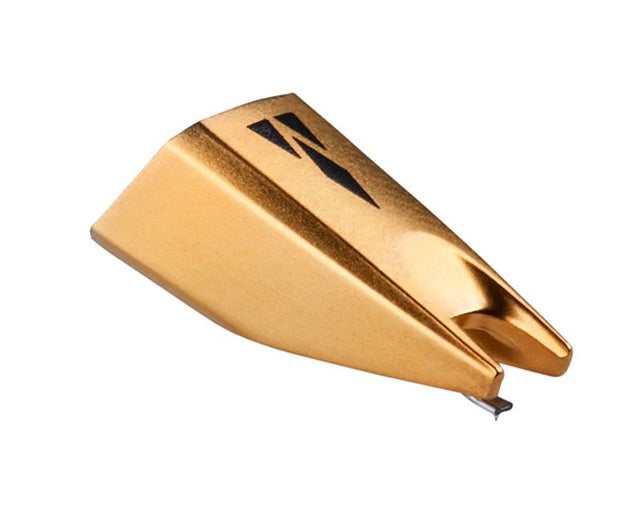

The Replacement Stylus for the Concorde Elite features a special-molded stylus body with real gold plating. Encased by the gold is a Nude Elliptical diamond mounted on a rigid Aluminum cantilever. The Nude Elliptical diamond stylus, normally used in HiFi cartridges, delivers a sound so powerful and detailed that you will experience a remarkable level of live performance.

The addition of a Nude Elliptical diamond allows a smaller moving mass, which guarantees an improved and detailed sound quality. The slim profile of the Nude Elliptical diamond makes it able to follow the groove oscillations more accurately, extract more intricate details, and track even the highest frequency information.

Variants

€299,00

Specifications

  • Channel balance at 1 kHz
    1 dB
  • Output voltage at 1 kHz, 5cm/sec
    8,5 mV
  • Channel seperation at 1 kHz
    25 dB
  • Channel seperation at 15 kHz
    15 dB
  • Tracking ability at 315Hz at recommended tracking force
    100 μm
  • Compliance, dynamic, lateral
    13 μm/mN
  • Stylus type
    Nude Elliptical
  • Stylus tip radius
    r/R 8/18 μm
  • Tracking force range
    2.0-4.0 g
  • Tracking force, recommended
    3.0 g
  • Tracking angle
    20°
  • Cartridge weight
    stylus = 1 g
