Stylus 10

More
  • Technical specifications
  • Image gallery

From

€60.00

Technical specifications

Frequency response: 20-20.000 Hz + 3 /- 3 dB
Tracking ability at 315Hz at recommended tracking force*): 60 µm
Compliance, dynamic, lateral: 20 µm/mN
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 µm

*) Typical value

Tracking force range: 1.25-1.75 g (12.5-17.5 mN)
Tracking force, recommended: 1.5 g (15 mN)
Tracking angle: 20°
Stylus colour: Black

Recommended for following cartridges: Super OM 10, OM 10, OMP(p-mount) 10, OMB(Bulk) 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, Concorde STD, TM 10H, LMB 12, SMB 12, LMA 12

Download Replacement styli datasheet

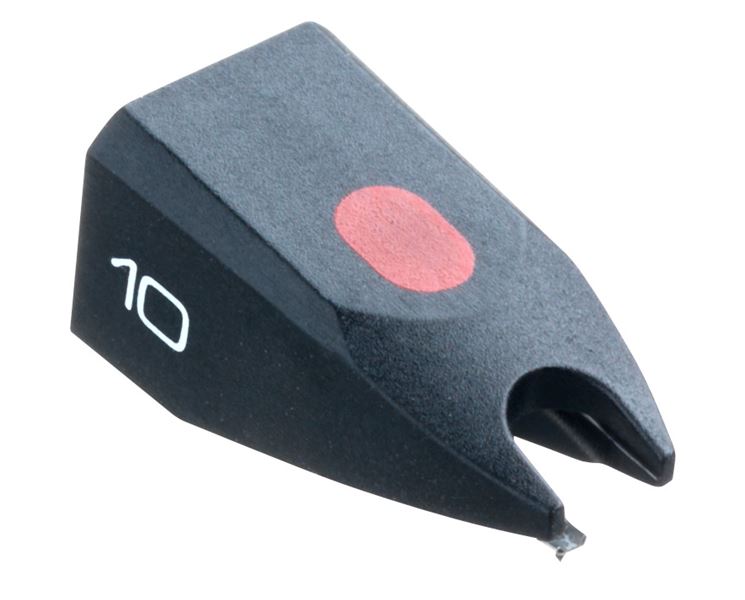

Stylus 10 front view

Stylus 10
