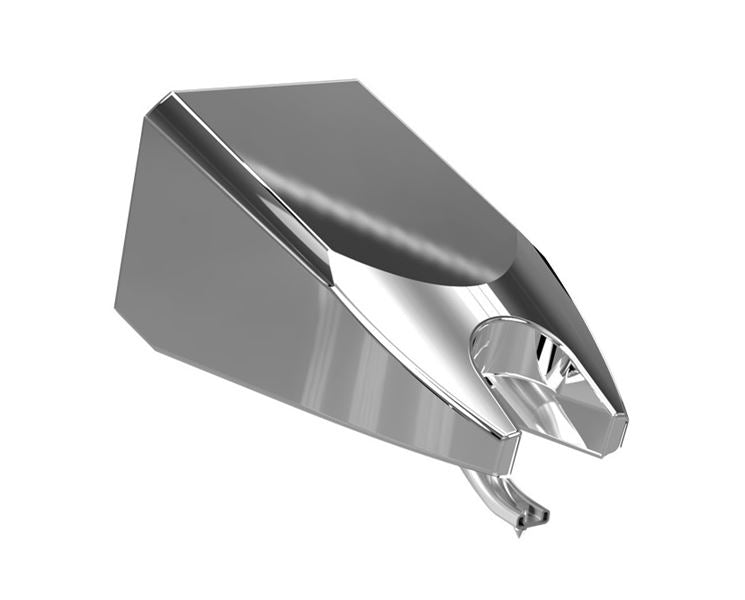

Stylus Century technical specifications

Frequency range at -3dB -  20-29.000 Hz
Frequency response   -  20-20.000 + 2 / - 0 dB
Tracking ability at 315Hz at recommended tracking force *) - 70 µm
Compliance, dynamic, lateral - 16 µm/mN
Stylus type - Nude Fine Line
Stylus tip radius  - r/R 8/40 µm

*) Typical value

Tracking force range - 1.6-2.0g (16-20 mN)
Tracking force, recommended - 1.8 g (18 mN)
Tracking angle - 20°
Stylus colour - Chrome
Recommended for Concorde Century

Download Replacement styli datasheet
