Stylus D25M

More
  • Technical specifications
  • Image gallery

From

€59.00

Technical specifications

Frequency range - 20-20.000 Hz
Frequency response - 20-18.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *) - 70 µm
Compliance, dynamic, lateral - 7 µm/mN
Stylus type - Spherical
Stylus tip radius - R 25µm

*) Typical value

Equivalent stylus tip mass - 0,5 mg
Tracking force range - 2,0-3,0 g (20-30 mN)
Tracking force, recommended - 2,5 g (25 mN)
Tracking angle - 20°
Stylus colour - Black
Recommended for following cartridges: all Super OM, OM, OMP, TM, Concorde cartridges for playing micro-groove records.

Download Replacement styli datasheet

0020101 €59.00 EUR In Stock

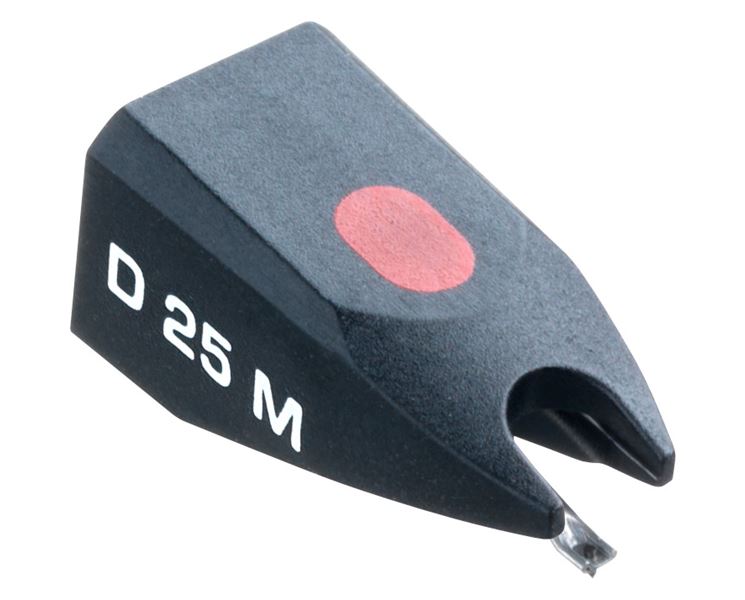

Stylus D 25 M front view

Stylus D25M

€59.00

In stock Low Stock Out of stock Usually dispatched within 1-3 working days
