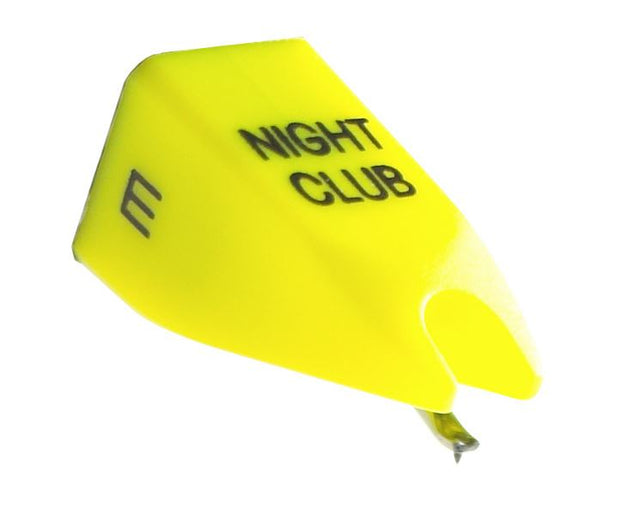

Nightclub E Replacement stylus

Stylus Night Club E

The Stylus Nightclub E is equipped with a Special Elliptical diamond, making it perfect for use in clubs with superb sound quality. Club DJs and studio professionals consider the Nightclub E an absolute high-end cartridge. It is indeed a no-nonsense performer with fascinating musical capabilities.

Its output is superb, with a frequency response rating high enough to rival any audiophile cartridge.

The special elliptical stylus guarantees sound with minimal scratching.

€79,00
Find nearest dealer

Specifications
  • Channel balance at 1 kHz
    1,5 dB
  • Output voltage at 1 kHz, 5cm/sec
    8 mV
  • Channel seperation at 1 kHz
    23 dB
  • Channel seperation at 15 kHz
    15 dB
  • Frequency response 20 Hz - 20 kHz
    +/- 1.5 dB
  • Tracking ability at 315Hz at recommended tracking force
    65 μm
  • Compliance, dynamic, lateral
    20 μm/m N
  • Stylus type
    Elliptical
  • Stylus tip radius
    r/R 8/18 μm
  • Tracking force range
    2.0-5.0 g (20-50 mN)
  • Tracking force, recommended
    3.0 g (30 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    1000 Ohm
  • Cartridge weight
    18.5 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    580 mH
  • Recommended load capacitance
    200-600 pF
