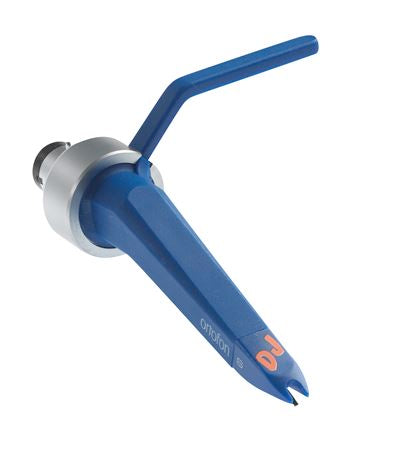

Concorde DJ S - basic model for scratch and back-cueing

The DJ S is a solid-built cartridge in a blue nylon material. It has a fine spherical stylus and a special developed and extremely balanced cantilever that provides outstanding rigidity.

Not only does the cartridge have a most sufficient tracking ability, it is also nearly unbreakable and provides the DJs with the most needed stringency.

Furthermore, it equals very low record wear, an advantage for busy DJ. The DJ series has been known to many as the "jack of all trades," with improved tracking alongside of accurate sound reproduction.

 Featuring a low wear stylus design, the DJ provides excellent groove handling, even with less weight applied.

The DJ series of cartridges are great for any style of music and has been a favoured choice of DJs around the world!

DJ S Technical Data

Output voltage at 1000Hz, 5cm/sec.  - 6 mV
Channel balance at 1kHz  - 2 dB
Channel separation at 1kHz  - 23 dB
Channel separation at 15 kHz  - 15 dB
Frequency response  - 20-18.000 Hz 3dB/-2dB
Tracking ability at 315 Hz at recommended tracking force  - 80 μm
Compliance, dynamic lateral -  9 μm/m N
Stylus type  - Spherical
Stylus tip radius  -  R 18 μm
Tracking force range  - 2,0-4,0 g (20-40 mN)
Tracking force recommended -  3,0 g (30 mN)

Tracking angle -  20°
Internal impedance, DC resistance -  750 Ohm
Internal inductance  - 450 mH
Recommended load resistance  - 47 kOhm
Recommended load capacitance  - 200-600 pF
Cartridge weight  - 18,5 g
Replacement stylus unit -  DJ S, DJ E
